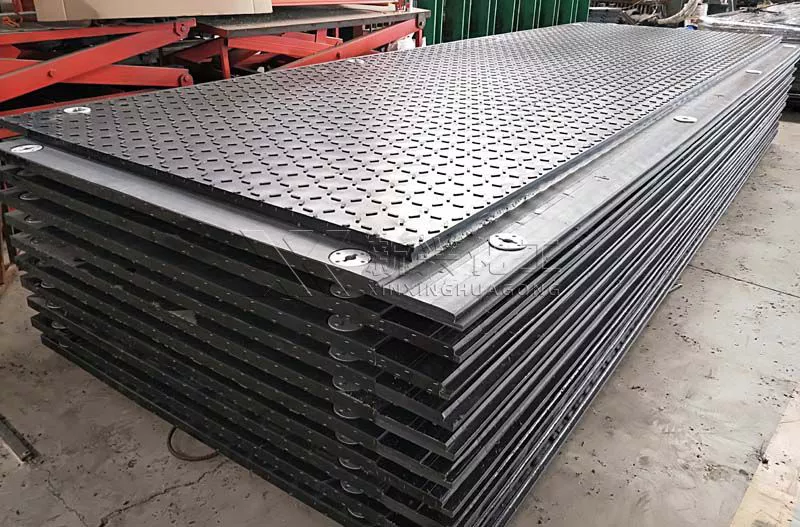

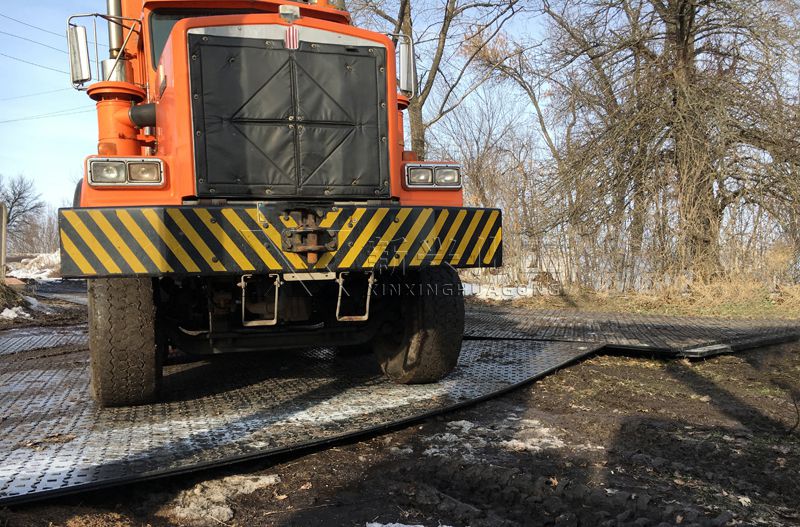

Composite plastic mats is a reusable plate made of polymer composite materials. Connect to the roadway with special locking joints. Designed for repeated use, it is possible to quickly build temporary roads and construction sites in areas with complex soil and geological conditions, protect road or soil from damage by heavy equipment.
Product introduction
Composite plastic mats is a reusable plate made of polymer composite materials. Connect to the roadway with special locking joints. Designed for repeated use, it is possible to quickly build temporary roads and construction sites in areas with complex soil and geological conditions, protect road or soil from damage by heavy equipment.
Environmental Advantages & Recycling
XINXING Composite plastic mats are made from 100% recyclable materials and have one of the lowest carbon footprints when compared to other mat products. Because our mats are non-permeable, they can be cleaned/decontaminated and reused indefinitely.
| Specifications of Mobile road coverage Composite plastic mats | |
| Product Type: - Mobile road coverage from polymer composite materials | |
| Dimensions:- Length, mm - Width, mm - Height, mm | 6130213088 |
| The effective surface area, (m²) | 12,00 |
| Weight, (kg) | 630 |
| Operating temperature range, (Сᵒ) | +50~-40Of +50 to -40 |
| Possibility of repeated use (number of times) | 20 |
| Preparatory work before installation | possibility of laying the cover on the terrain with an unevenness up to 0.5 m |
| Operation on sandy and clayey soils | YES |
| Operation in the marshy areas of the first and second type (without sand dumping) | YES |
| Restrictions on maneuvering technique | no limits |
| Equipment with locking connectors to fix the plates together | YES |
| Availability of the necessary tools and materials for each batch of plates of 30 pieces for assembly and dismantling works. Including lock joints, locks, sling lines, installation hooks, spanner wrenches, extractors, repair kits) | YES |
| Specification of the load on the plate | |
| Wheel, (т) | 120 |
| Axial, (т) | 60 |
| Tracked, (т) | 120 |
| Breaking stress at bending, MPa | 50-70Mpa |
| Breaking stress at compression, MPa | 30-35Mpa |
| Water absorption at temperature (23+-2)℃ during (24+-1) hours, % not more than | ＜2% |
| Frost resistance, loss of bending strength after 25 cycles of freezing at temperature(-40)℃ and thawing, % not more than | ≤10% |
| Resistance to petroleum products, loss of bending strength, % not more than | ≤10% |
If you have any question and inquiry of Event Flooring mat, please contact me freely: sunny@sdxxhg.com
Other related Products of Access Road Mats:
QuickMat: Light weight, Easy to move by man.
DuraMat: Heavy duty, work well for heavy truck.
BaseMat: Bigger Size and Fexible.
AmphiMat: With Overlapping design, only one manufacturer in China
Outrigger Pad: Keep heavy equipment in balance and protect the ground.
